Size of this preview: 436 × 599 pixels. Other resolution: 1,000 × 1,373 pixels.

Original file (1,000 × 1,373 pixels, file size: 177 KB, MIME type: image/png)

Summary

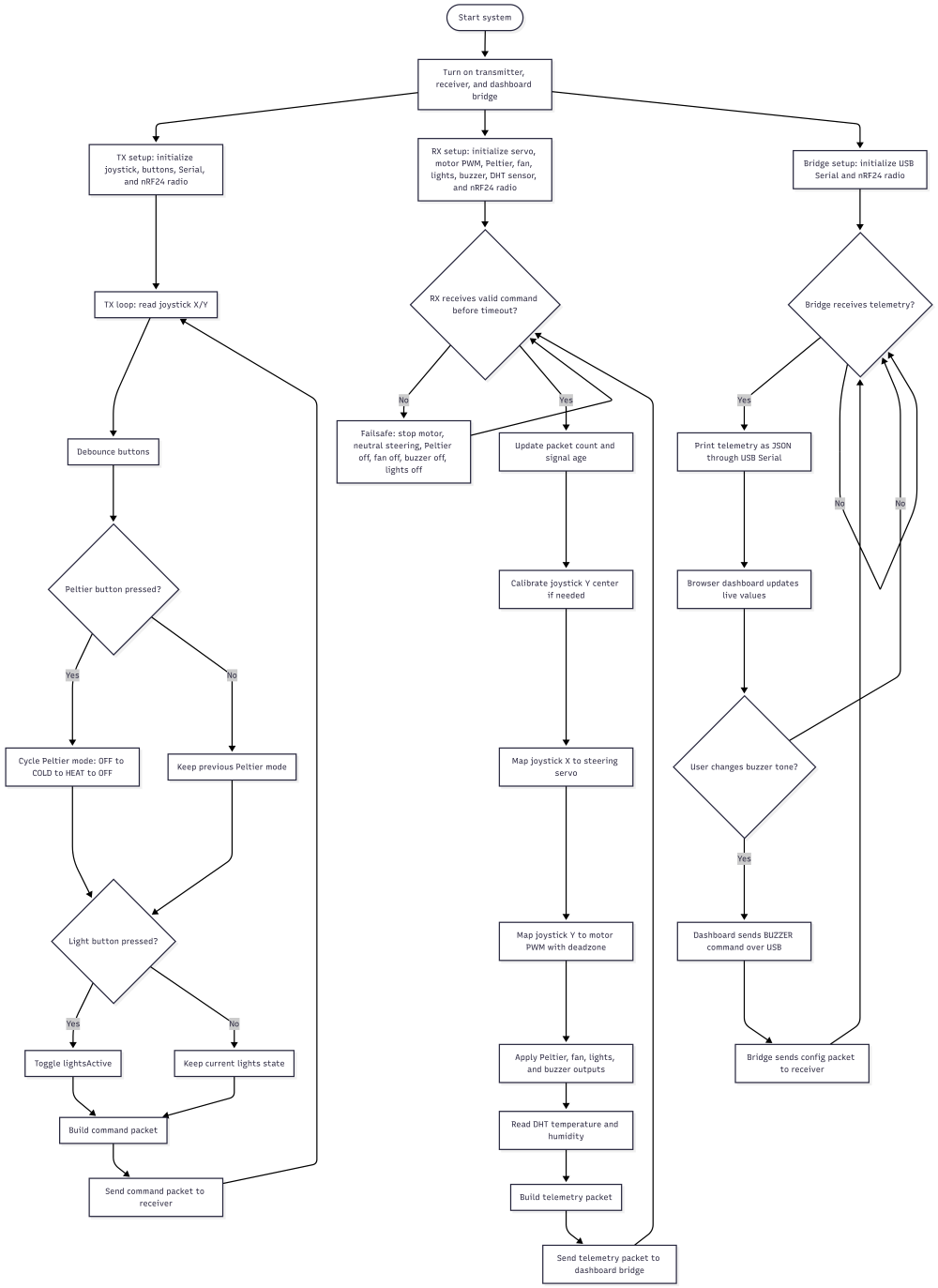

Description	English: Figure 7. Final Coding program flowchart for transmitter, vehicle receiver, third Nano bridge, and dashboard.
Date	14 June 2026(2026-06-14)
File source	Own Work
Author	ChristopherRodasCastillo
